Heavy-Duty Range
Heavy Duty Range
overview
Some of the best chefs in the world choose the Montague Legend for its functionality and fine craftsmanship. For those who demand performance, durability, easy cleaning, and longevity, the Legend Range delivers.
Multiple cooktop variations offer unparalleled options
One of the largest cooking surfaces in the industry
Time tested, angle-iron construction for unmatched strength and durability
Available in countertop, oven, or open cabinet configurations
Front-vented oven supports consistent temperatures throughout for perfect baking
Counter-weighted, gasket-free door provides a tight seal and legendary strength
Manuals
BUILT FOR HOW YOU WORK

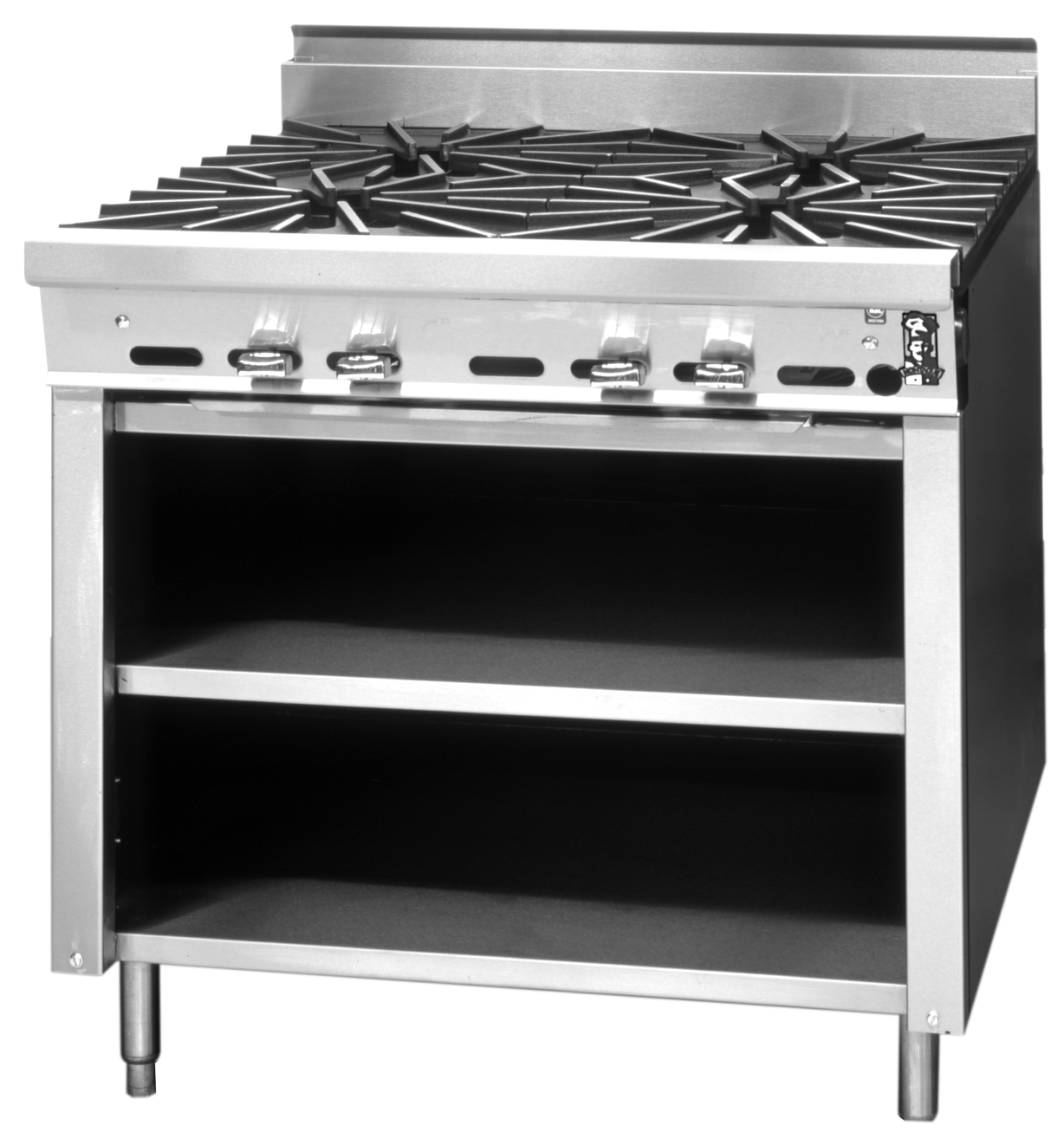

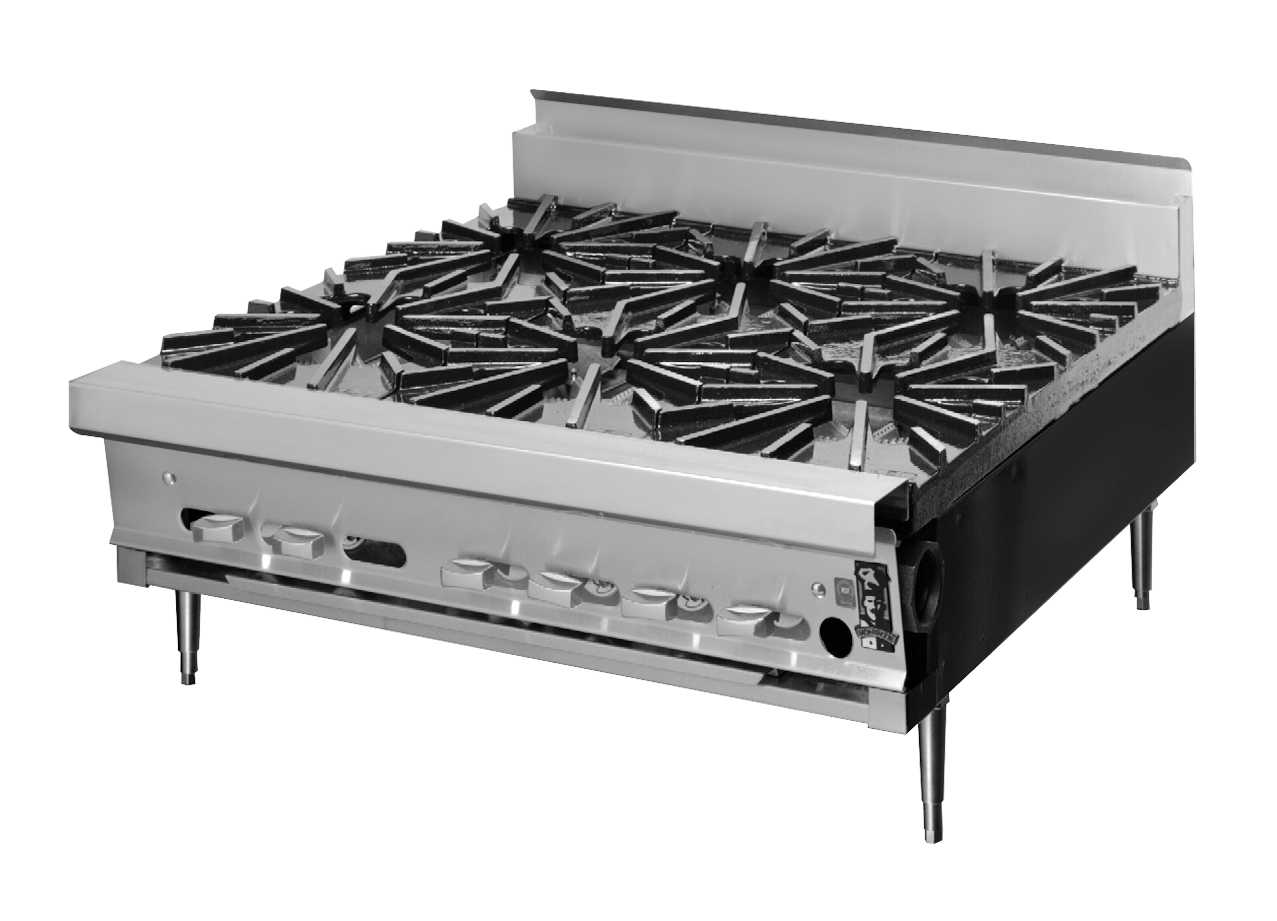

Choice of countertop unit or free-standing range with base options including modular stand, open cabinet base, or oven
Angle-iron construction provides exceptional structural strength to stand the test of time
Stainless-steel front
Stainless-steel 4″ (10.2cm) flue risers
Painted surfaces are electrolytic zinc coated for superior corrosion protection and long life
Designed for quick installation
Easy to clean
See top options here .

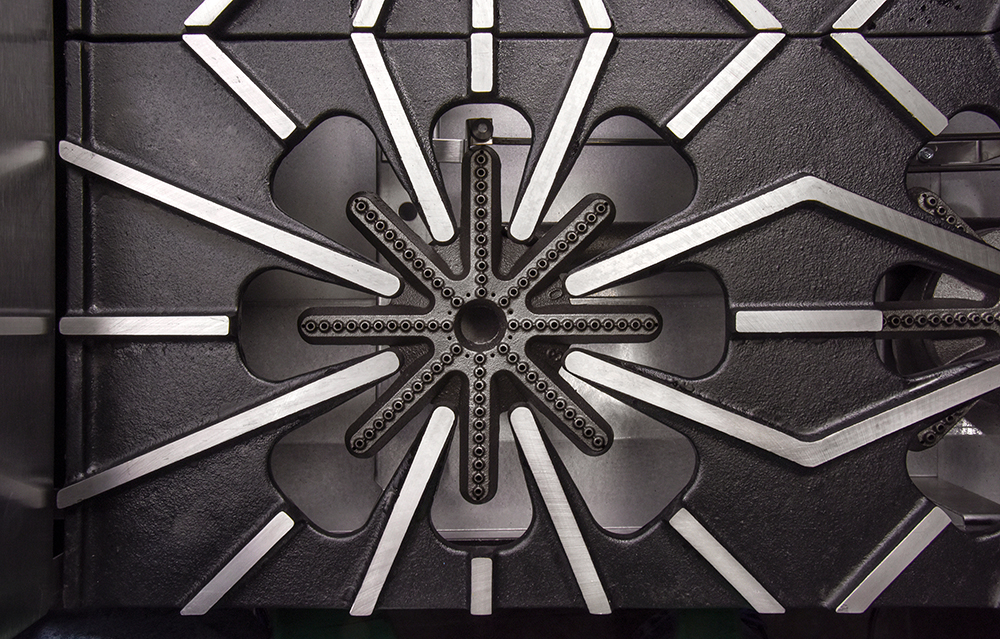

Open top star-burners are the largest cast iron burner in the industry with exceptional heat distribution
Heavy-duty, one-piece cast iron grates
Manual or thermostatic controlled steel griddle
French top (ring and cover) offers graduated heat from front to back
Precision ground steel hot tops are equipped with heat conduction studs
Choose from forty standard configurations, all priced the same

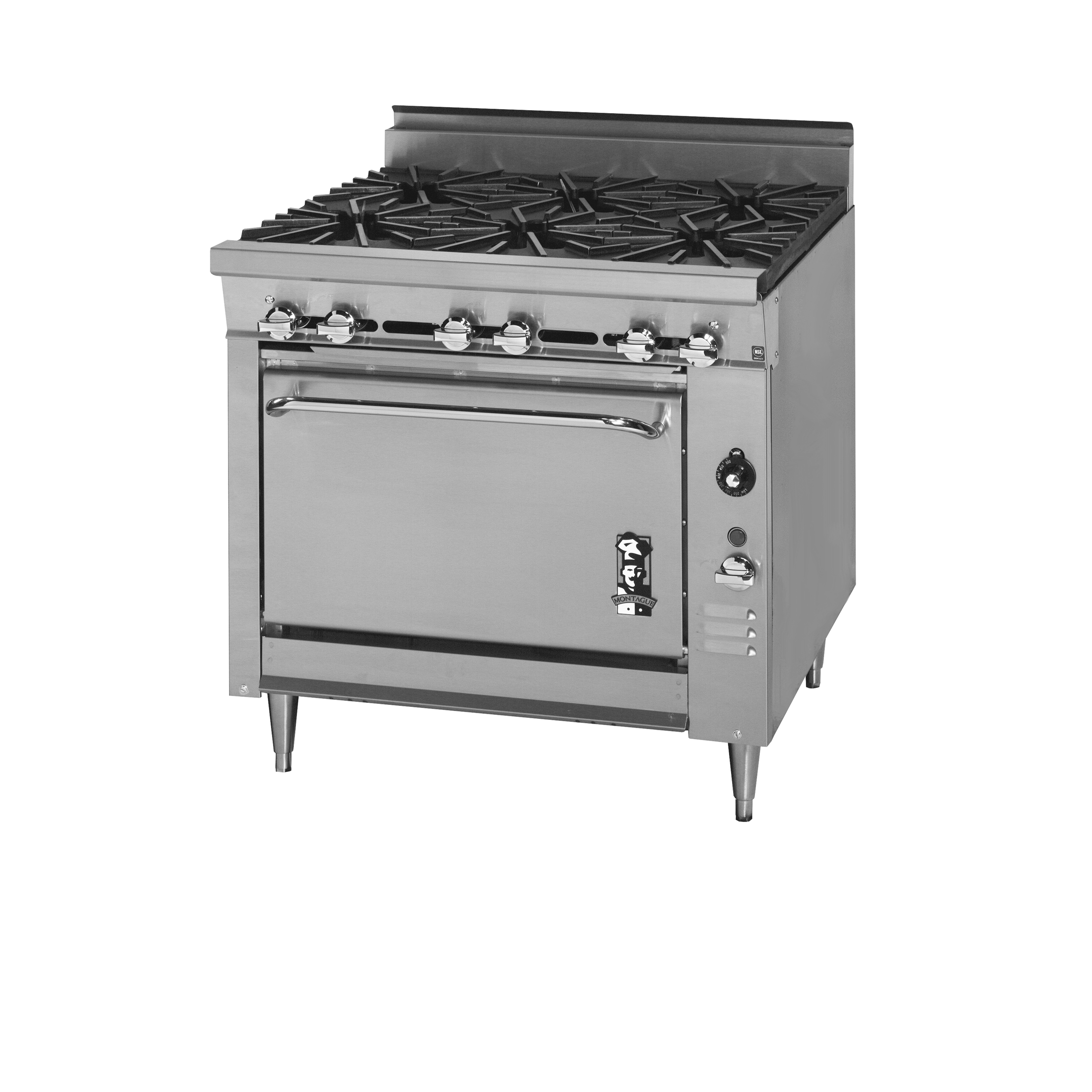

Standard ovens: 40,000 BTUs/hr. cast iron burner
Convection ovens: 45,000 BTUs/hr. cast iron burner
Front vent design supports consistent temperatures throughout for perfect baking and consistent results
Fully lined porcelain oven interior is easy to clean
Bright nickel-coated oven racks and rack guides
Three-position adjustable nickel-plated rack supports, with one
Heavy-duty throttling type thermostat is located in the “cool zone” for years of accurate temperature control
Renowned counter-weighted door provides a tight seal and legendary strength without door springs or a gasket
Choice of countertop unit or free-standing range with base options including modular stand, open cabinet base, oven, or refrigerated base.
Extra deep (42″/106.7cm) range depth
Sleek, streamlined flue risers and high shelves
Stainless steel sides
Casters
Channel bases
Security packages
Range mounted salamander or cheesemelters
1 ¼” (3.2cm) front manifold gas connection for customized batteries
Range Top Configurations
Model Number
136-0E
136-0EPL
136-0G
136-0GPL
136-1E
136-1G
136-2E
136-2G
136-3E
136-3G
136-4E
136-4G
136-5
136-5S
136-559
136-559S
136-5A
136-6
136-7
136-7PL
136-8
136-8PL
136-9E
136-9G
136-9A
136-9ASE
136-10E
136-10G
136-11
136-11E
136-12
136-12EPL
136-12E
136-12GPL
136-13
136-13PL
136-14
136-14E
136-15
136-16
Description
One 24" (61 cm) Griddle Left and One 12" (30.5 cm ) Even Heat Hot Top Right
One 24" (61 cm) Plancha Left and One 12" (30.5 cm ) Even Heat Hot Top Right
One 24" (61 cm) Griddle Left and One 12" (30.5 cm ) Gradient Heat Hot Top Right
One 24" (61 cm) Plancha Left and One 12" (30.5 cm ) Gradient Heat Hot Top Right
One 12" (30.5 cm) Griddle Left and Two 12" (30.5 cm ) Even Heat Hot Tops Right
One 12" (30.5 cm) Griddle Left and Two 12" (30.5 cm ) Gradient Heat Hot Tops Right
Two 12" (30.5 cm) Open Tops Left and One 12" (30.5 cm ) Even Heat Hot Top Right
Two 12" (30.5 cm) Open Tops Left and One 12" (30.5 cm ) Gradient Heat Hot Top Right
Two 12" (30.5 cm) Even Heat Hot Tops Left and One 12" (30.5 cm ) Open Top Right
Two 12" (30.5 cm) Gradient Heat Hot Tops Left and One 12" (30.5 cm ) Open Top Right
One 12" (30.5 cm) Even Heat Hot Top Left and Two 12" (30.5 cm ) Open Tops Right
One 12" (30.5 cm) Gradient Heat Hot Top Left and Two 12" (30.5 cm ) Open Tops Right
Three 12" (30.5 cm ) Open Tops
Three 12" (30.5 cm ) Open Tops with Step-Up
Three 12" (30.5 cm ) Combination Tops, Open Tops/Hot Tops
Three 12" (30.5 cm ) Combination Tops with Step-Up
Two 18" (45.7 cm) Open Tops
One 12" (30.5 cm ) Griddle Left and Two 12" (30.5 cm ) Open Tops Right
One 24" (61 cm) Griddle Left and One 12" (30.5 cm ) Open Top Right
One 24" (61cm) Plancha Left and One 12" (30.5 cm ) Open Top Right
One 36" (91.4 cm) Griddle
One 36" (91.4 cm) Plancha
Three 12" (30.5 cm) Even Heat Hot Tops
Three 12" (30.5 cm) Gradient Heat Hot Tops
Two 18" (45.7 cm) Hot Tops with French Top
Two 18" (45.7 cm) Even Heat Hot Tops
One 12" (30.5 cm) Open Top Left and Two 12" (30.5 cm) Even Heat Hot Tops Right
One 12" (30.5 cm) Open Top Left and Two 12" (30.5 cm) Gradient Heat Hot Tops Right
One 18" (45.7 cm) Hot Top with French Top Left and One 18" (45.7 cm) Open Top Right
One 18" (45.7 cm) Even Heat Hot Top Left and One 18" (45.7 cm) Open Top Right
One 18" (45.7 cm) Griddle Left and One 18" (45.7 cm) Hot Top with French Top Right
One 18" (45.7 cm) Plancha Left and One 18" (45.7 cm) Even Heat Hot Top Right
One 18" (45.7 cm) Griddle Left and One 18" (45.7 cm) Even Heat Hot Top Right
One 18" (45.7 cm) Plancha Left and One 18" (45.7 cm) Hot Top with French Top Right
One 18" (45.7 cm) Griddle Left and One 18" (45.7 cm) Open Top Right
One 18" (45.7 cm) Plancha Left and One 18" (45.7 cm) Open Top Right
One 18" (45.7 cm) Open Top Left and One 18" (45.7 cm) Hot Top with French Top Right
One 18" (45.7 cm) Open Top Left and One 18" (45.7 cm) Even Heat Hot Top Right
One 18" (45.7 cm) Even Heat Hot Top Left and One 18" (45.7 cm) Hot Top with French Top Right
One 18" (45.7 cm) Hot Top with French Top Left and One 18" (45.7 cm) Even Heat Hot Top Right
