Broilers

Heavy Duty Underfired Broiler

BUILT FOR HOW YOU WORK

  • Choose from powerful, high heat cast iron or stainless-steel radiant burners (19,000 BTU’s/hr.) or ceramic cast iron “H” burners (45,000 BTUs/hr.)
  • Each burner is controlled by an independent, high-temperature valve designed for longevity

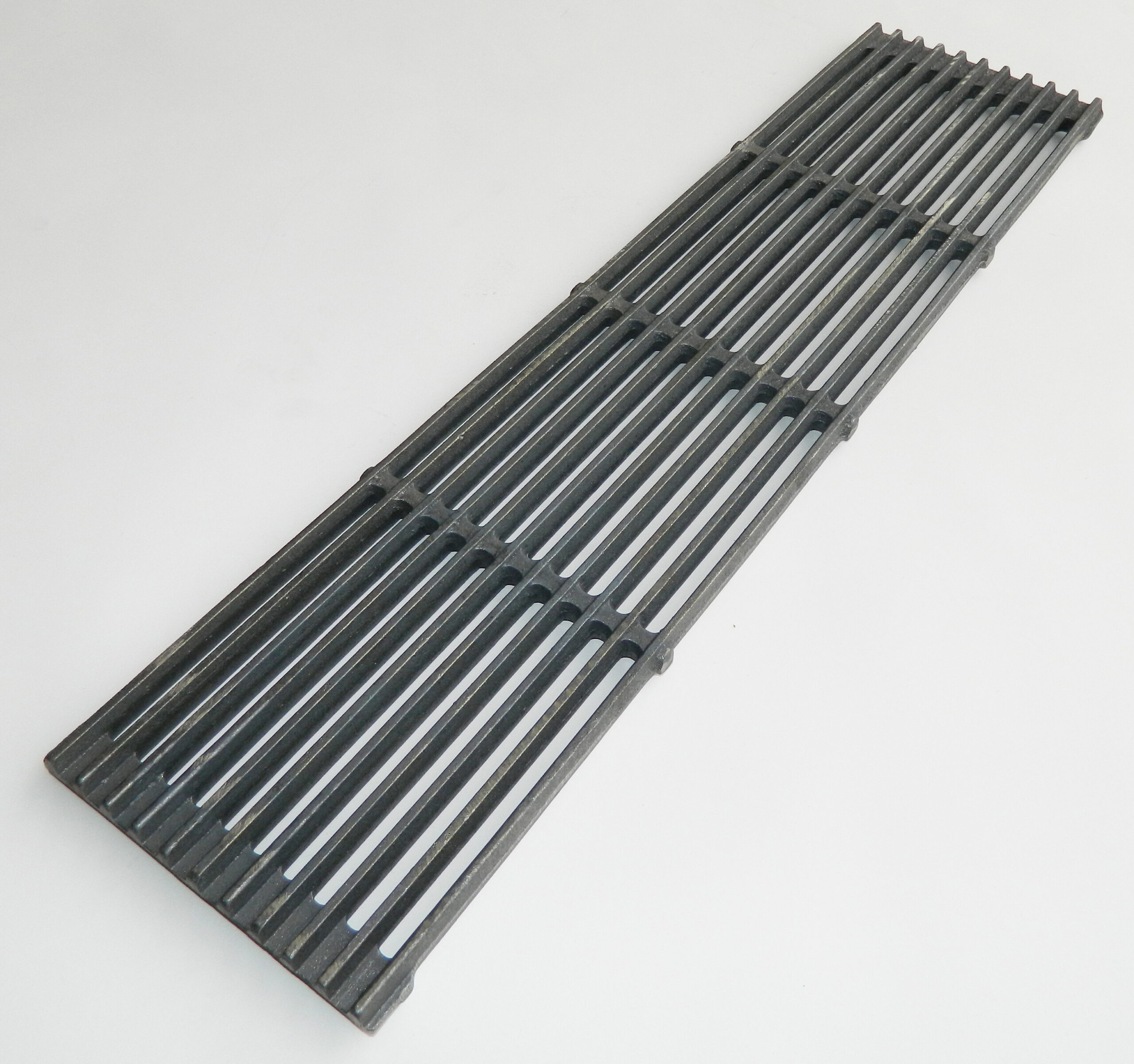

  • Standard Ultra-Flow heavy-duty, double-sided/reversible cast iron grates
    • Ribbed side has 1-inch (25 cm) markings with a built-in grease trough
    • Flat side for broiling fish or other delicate products
  • Vertically adjustable cooking grates can be positioned flat or up to a 3″ (7.6 cm) slope for maximum grease drainage and reduced flare-ups
  • Full-width grease trough for quick transfer of excess grease into a removable container
  • Removable full-width debris screen under the burners
  • Removable full-width drip tray
  • Convenient temperature zones
  • Choose from powerful, high heat cast iron or stainless-steel radiant burners (19,000 BTU’s/hr.) or ceramic cast iron “H” burners (45,000 BTUs/hr.)
  • Rear manifold
  • Seafood grate
  • Round grate
  • Range Match* Low-Profile Counter Radiant Broilers (UFLC models)
  • Shallow Depth Low-Profile Counter Radiant Broilers (UFLCS models)
  • Range Match* Series with Cabinet Base (UF models)

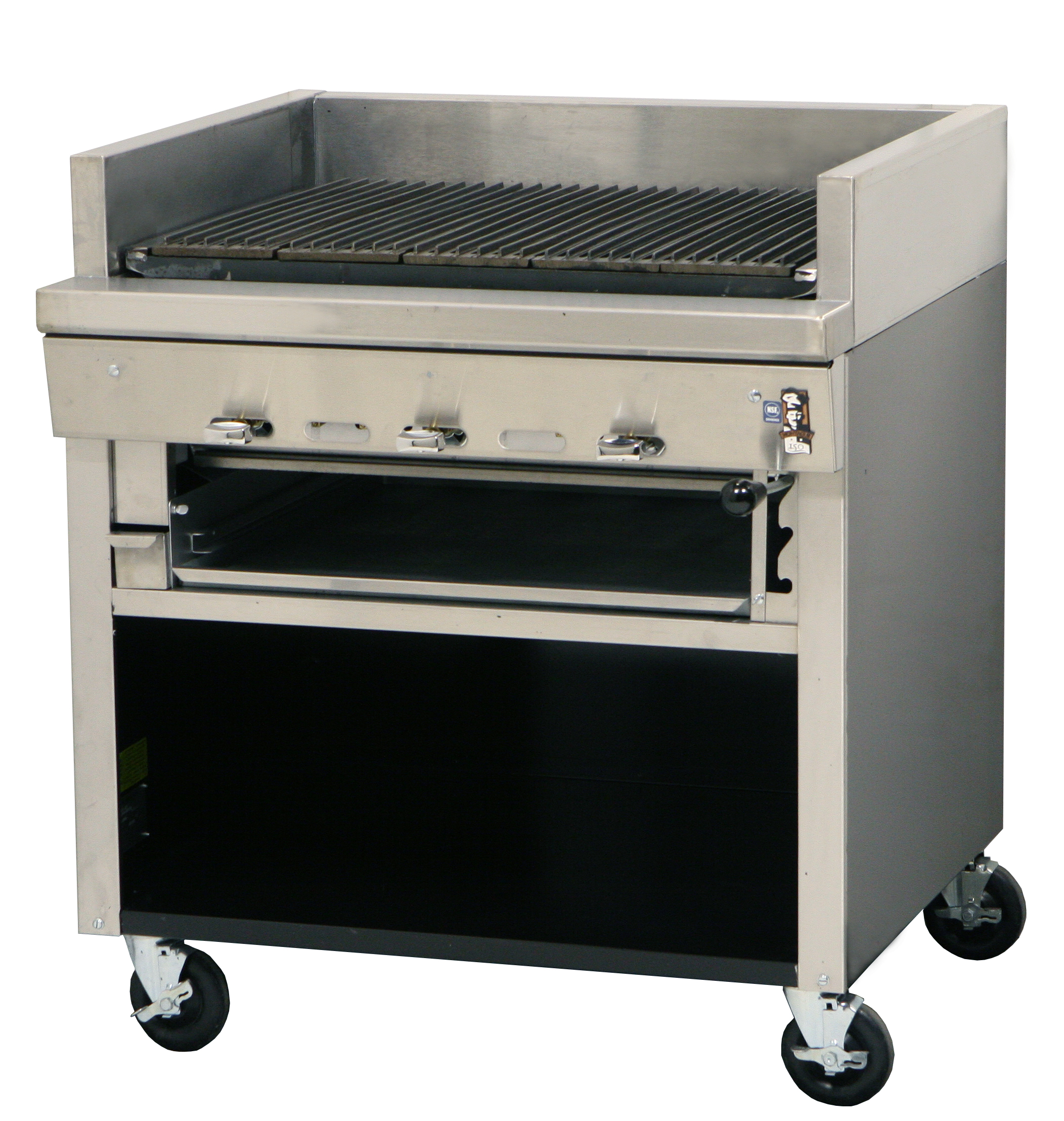

  • Free-standing Series with Cabinet Base (UFS models)

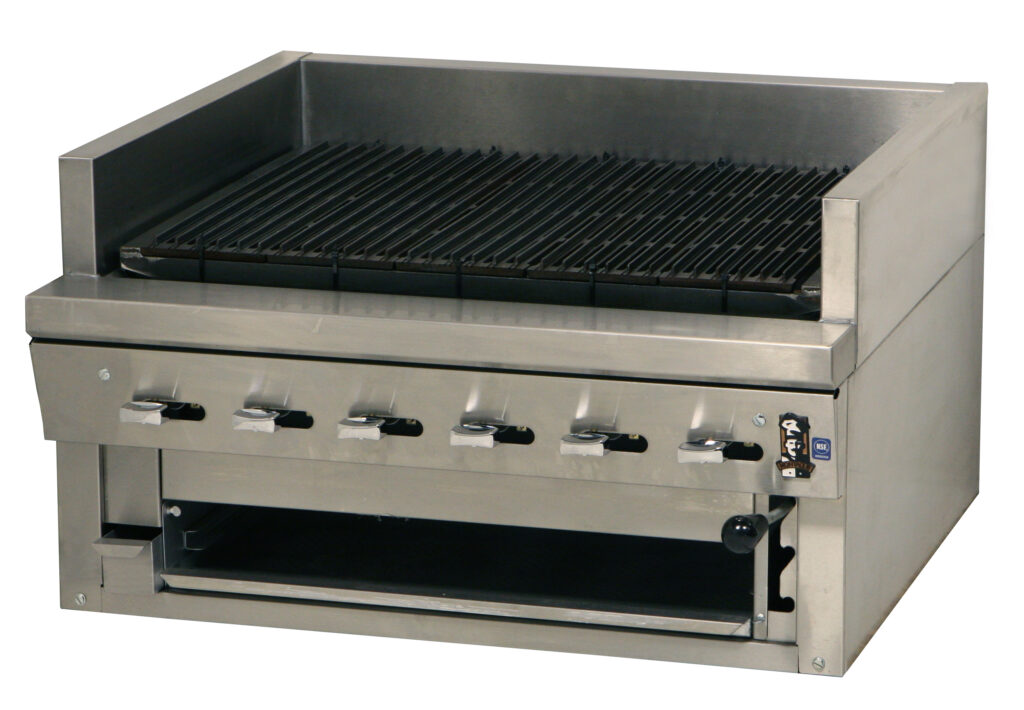

  • Countertop Series (UFSC models)
  • Free-standing Counter Series with Modular Stand (UFSM)

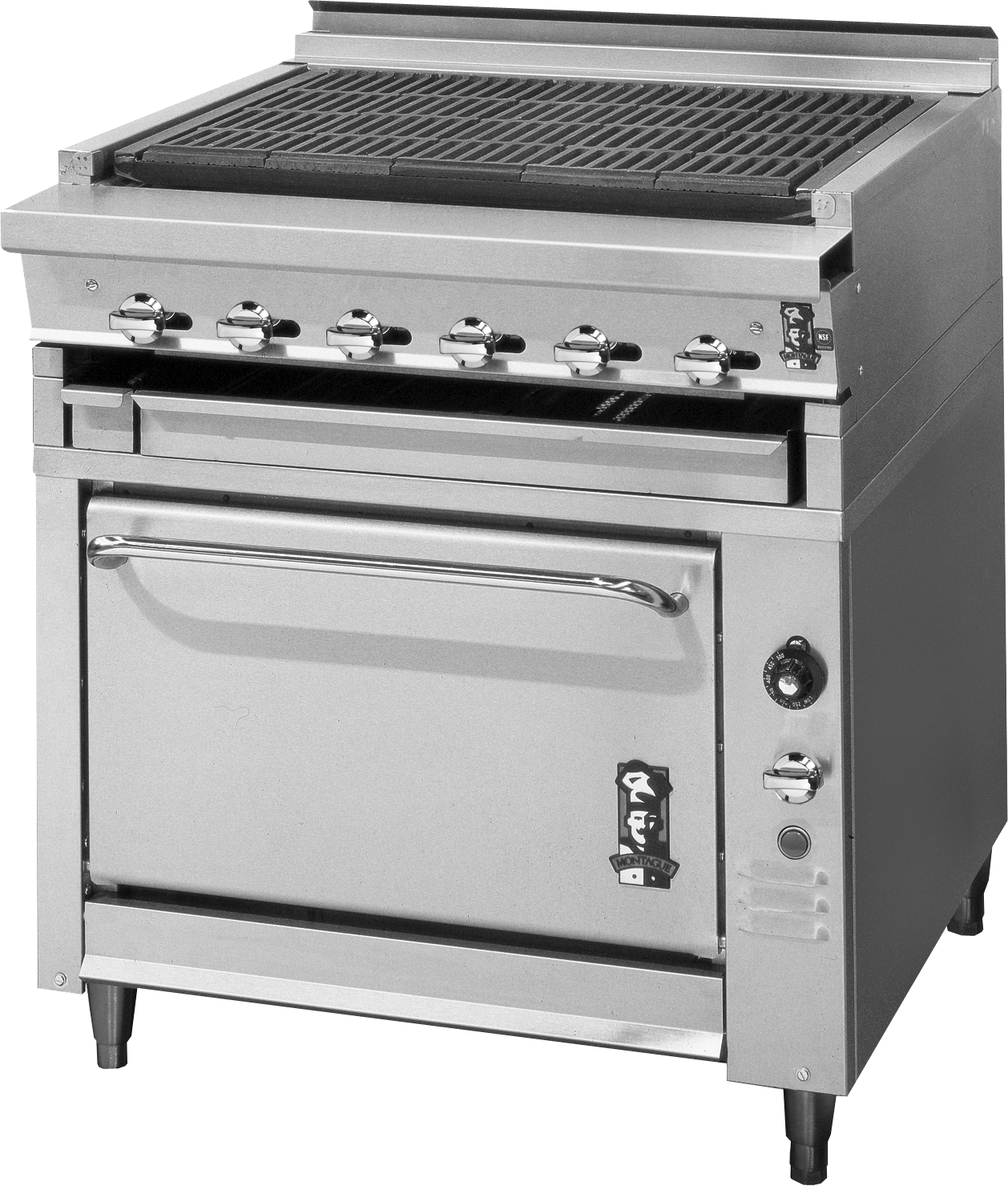

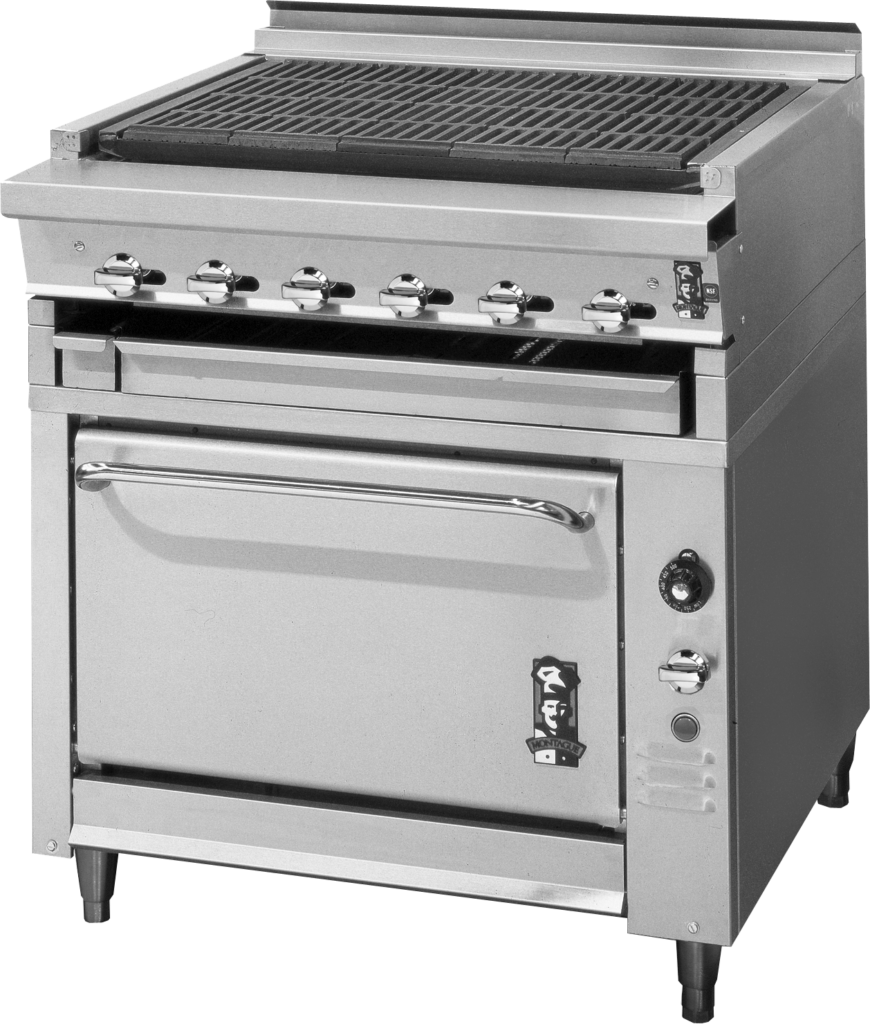

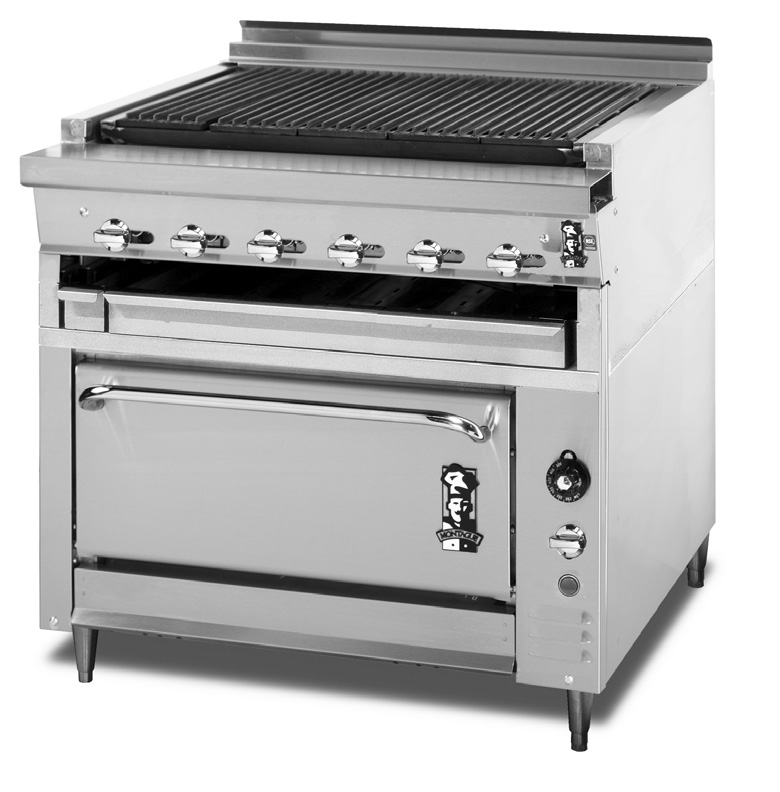

  • Radiant Broiler with Low Boy Oven Base – 42-inch working height (136LB/UFLC)
  • Radiant Broiler with Extra Low Boy Oven Base – 36-inch working height (136XLB/ UFLC)

*Range Match is counter height 36″ ( 91.44 cm )

Model                    Description

UF-*R                     Radiant Style Broiler, Range Match with Cabinet Base

UFLC-*R                Radiant Style Broiler, Range Match Low Profile Countertop

UFS-*R                   Radiant Style Broiler Free Standing with Cabinet Base

UFSC-*R                Radiant Style Broiler Free Standing Countertop

UFSM-*R               Radiant Style Broiler Free Standing Modular Base

136LB/UFLC** R      Radiant Broiler w/Low Boy Oven Base – 42” working height

136XLB/ UFLC**R    Radiant Broiler w/Extra Low Boy Oven Base – 36” working height

*Sizes available

  • 18″ (45.72 cm) *not available on freestanding units
  • 24″ (60.96 cm)
  • 30″ (76.2cm)
  • 36″ (91.44 cm)
  • 48″ (121.92 cm)
  • 60″ (152.4 cm)
  • 72″ (182.88 cm)

**Broilers with oven bases, sizes 36″ (91.44 cm), 48″ (121.92 cm), 60″ (152.4 cm), 72″ (182.88 cm)

Model          Description:

UF-*C           Ceramic Style Underfired Broiler, Range Match w/Cabinet Base

UFS-*C         Ceramic Style Underfired Broiler Range, Free Standing w/Cabinet Base

UFSC-*C      Ceramic Style Underfired Broiler Range, Free Standing Countertop

UFSM-*C      Ceramic Style Underfired Broiler Range, Free Standing Modular Base

*Sizes available:

  • 24″ (60.96 cm)
  • 30″ (76.2cm)
  • 36″ (91.44 cm)
  • 48″ (121.92 cm)
  • 60″ (152.4 cm)
  • 72″ (182.88 cm)

Range Match is counter height 36″ (91.44 cm)
